PTFE Utility Needle Valves - Stainless Steel Shell & Bushing

PTFE Utility Needle Valves - Stainless Steel Shell & Bushing

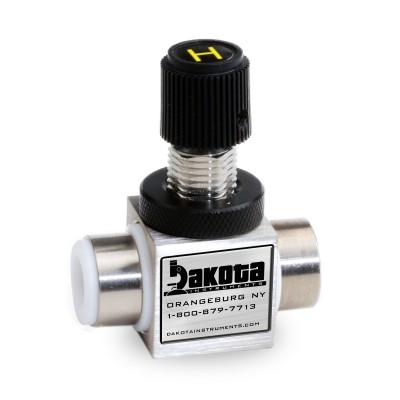

Image for illustrative purposes only, actual product may vary.

PTFE Utility Needle Valves with Stainless Steel shells and bushings are constructed for corrosive gas, liquid, and high purity regulation. Can also be used as bubble tight shut off valves.
  • PTFE/ PEEK materials
  • Regulation of corrosive, high purity gases and liquids
  • Performs well in high and low flow ranges
  • Bubble-tight shutoff
Specifications: 6ATV21
Maximum Pressure: 75 psig (517 kPa)
Maximum Temperature: 150°F (65°C)
Orifice Size: 0.125” Diameter (3.175mm)
Fluid Contacting Components: Body/O-Ring-PTFE; Valve Spindle-PEEK
Non-Fluid Contacting Components: Shell and Busing 316 Stainless Steel. Adjusting Knob-Phenolic.
Usually Ships in 5 to 7 Business Days
Item #Item DescriptionItem PriceSubtotalQty
6ATV2101Maximum Flow Rate: Air - 2400 mL/min, Water - 130 mL/min, 0.011 Cv, 1/8" FNPT $85.00 $0.00
6ATV2102Maximum Flow Rate: Air - 55000 mL/min, Water - 2800 mL/min, 0.250 Cv, 1/8" FNPT $85.00 $0.00
6ATV2103Maximum Flow Rate: Air - 2400 mL/min, Water - 130 mL/min, 0.011 Cv, 1/4"Compression Fittings $218.00 $0.00
6ATV2104Maximum Flow Rate: Air - 55000 mL/min, Water - 2800 mL/min, 0.250 Cv, 1/4" Compression Fittings $218.00 $0.00
6ATV2105Maximum Flow Rate: Air - 2400 mL/min, Water - 130 mL/min, 0.011 Cv, Glass Nipples $93.00 $0.00
6ATV2106Maximum Flow Rate: Air - 55000 mL/min, Water - 2800 mL/min, 0.250 Cv, Glass Nipples $93.00 $0.00

* Required Fields

Usually Ships in 5 to 7 Business Days
$85.00
