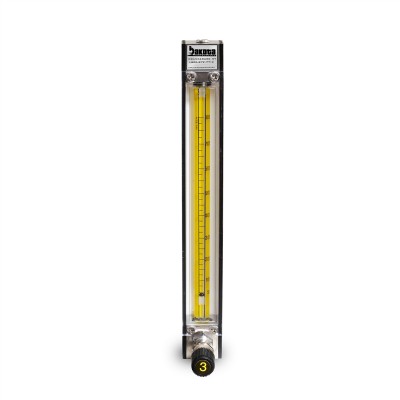

150mm Brass Flow Meter with MFV Valve

150mm Brass Flow Meter with MFV Valve
Image for illustrative purposes only, actual product may vary.

Designed for low flow rates, these 150mm Single Tube Brass Flow Meters are precision instruments embodying the inherent simplicity, versatility and economy of the classical variable area meter. They are particularly suitable for metering carrier gases in chromatography, in manufacturing processes, liquid and gas measurements in laboratories, pilot plants, flow and level indicating and controlling gases. This rotameter comes with a High Precision MFV Metering Valve. MFV Valves are ideal for adjusting flow rates whenever high sensitivity control and resolution are desirable, particularly in conjunction with metering tubes of very low flow rates.
  • Rib-guided or fluted metering tubes facilitate stable, accurate readings.
  • Magnifier lens in front shield enhance reading resolution
  • Interchangeability of flow tubes and floats
  • Ease of installation and exchange of flow tubes
  • Simple means of panel mounting
  • Chemical compatibility
Specifications:6AP01; 6AP11; 6AP21
Standard Accuracy:+/- 2% of full scale (mm scales)
+/- 5% of full scale (direct reading scales)
Repeatability:+/- 0.25%
Useful Flow Ranges:10:1 minimum with one float and better than 20:1 with combination of two floats installed in meters.
Maximum Operating Pressure:200 psig / 13.8 bars
Maximum Operating Temperature:121° C (250° F)
Flow Tubes:Heavy walled borosilicate glass
Tube Shields:Thick, clear, polycarbonate and white acrylic
Floats:Glass, Sapphire, 316 Stainless Steel, Carboloy®
Choice Of Fittings in Contact with Fluids:a) Aluminum, black anodized
b) Brass, chrome plated
c) 316 stainless steel
Side Panels:Aluminum, black anodized.
Front Shield and Back Plate:Lexan® with longitudinal magnifier lens for enhanced reading resolution.
O-rings and Packings:Buna-N® O-rings in aluminum and brass models. Viton® O-rings in 316 stainless steel models. OPTIONAL Viton® PTFE Kalrez® and EPR
Connections:1/8" NPT female inlet and outlet connections OPTIONAL Glass hose or compression fittings.
Usually Ships in 5 to 7 Business Days
Item #Item DescriptionItem PriceSubtotalQty
6AP1101M1Maximum Flow Range: Air - 11.6 ml/min (0.024 scfh) Glass Float, High Precision Valve (MFV) $251.00 $0.00
6AP1102M1Maximum Flow Range: Air - 18.3 ml/min (0.038 scfh) Sapphire Float, High Precision Valve (MFV) $251.00 $0.00
6AP1103M1Maximum Flow Range: Air - 34 ml/min (0.07 scfh) 316 SS Float, High Precision Valve (MFV) $251.00 $0.00
6AP1104M1Maximum Flow Range: Air - 62.8 ml/min (0.13 scfh) Carboloy Float, High Precision Valve (MFV) $251.00 $0.00
6AP1105M1Maximum Flow Range: Air - 46.6 ml/min (0.098 scfh) | Water 0.50 ml/min (0.007 gph) Glass Float, High Precision Valve (MFV) $251.00 $0.00
6AP1106M1Maximum Flow Range: Air - 73.1 ml/min (0.154 scfh) | Water 0.99 ml/min (0.015 gph) Sapphire Float, High Precision Valve (MFV) $251.00 $0.00
6AP1107M1Maximum Flow Range: Air - 138.3 ml/min (0.293 scfh) | Water 2.36 ml/min (0.037 gph) 316 SS Float, High Precision Valve (MFV) $251.00 $0.00
6AP1108M1Maximum Flow Range: Air - 239.1 ml/min (0.506 scfh) | Water 4.60 ml/min (0.072 gph) Carboloy Float, High Precision Valve (MFV) $251.00 $0.00
6AP1109M1Maximum Flow Range: Air - 91.6 ml/min (0.194 scfh) | Water 1.13 ml/min (0.020 gph) Glass Float, High Precision Valve (MFV) $251.00 $0.00
6AP1110M1Maximum Flow Range: Air - 144.3 ml/min (0.306 scfh) | Water 2.19 ml/min (0.035 gph) Sapphire Float, High Precision Valve (MFV) $251.00 $0.00
6AP1111M1Maximum Flow Range: Air - 262.2 ml/min (0.556 scfh) | Water 4.97 ml/min (0.079 gph) 316 SS Float, High Precision Valve (MFV) $251.00 $0.00
6AP1112M1Maximum Flow Range: Air - 431.7 ml/min (0.915 scfh) | Water 9.23 ml/min (0.146 gph) Carboloy Float, High Precision Valve (MFV) $251.00 $0.00
6AP1113M1Maximum Flow Range: Air - 370.6 ml/min (0.784 scfh) | Water 5.71 ml/min (0.090 gph) Glass Float, High Precisioin Valve (MFV) $251.00 $0.00
6AP1114M1Maximum Flow Range: Air - 513.3 ml/min (1.087 scfh) | Water 10.00 ml/min (0.158 gph) Sapphire Float, High Precision Valve (MFV) $251.00 $0.00
6AP1115M1Maximum Flow Range: Air - 816.0 ml/min (1.729 scfh) | Water 19.2 ml/min (0.301 gph) 316 SS Float, High Precision Valve (MFV) $251.00 $0.00
6AP1116M1Maximum Flow Range: Air - 1216.9 ml/min (2.579 scfh) | Water 31.6 ml/min (0.500 gph) Carboloy Float, High Precision Valve (MFV) $251.00 $0.00
6AP1117M1Maximum Flow Range: Air - 817 ml/min (1.731 scfh) | Water 15.2 ml/min (0.240 gph) Glass Float, High Precision Valve (MFV) $251.00 $0.00
6AP1118M1Maximum Flow Range: Air - 1093 ml/min (2.316 scfh) | Water 24.9 ml/min (0.394 gph) Sapphire Float, High Precision Valve (MFV) $251.00 $0.00
6AP1119M1Maximum Flow Range: Air - 1665 ml/min (3.528 scfh) | Water 44.3 ml/min (0.702 gph) 316 SS Float, High Precision Valve (MFV) $251.00 $0.00
6AP1120M1Maximum Flow Range: Air - 2405 ml/min (5.096 scfh) | Water 69.0 ml/min (1.094 gph) Carboloy Float, High Precision Valve (MFV) $251.00 $0.00
6AP1121M1Maximum Flow Range: Air - 2214 ml/min (4.690 scfh) | Water 49.9 ml/min (0.792 gph) Glass Float, High Precision Valve (MFV) $251.00 $0.00
6AP1122M1Maximum Flow Range: Air - 2975 ml/min (6.300 scfh) | Water 77.7 ml/min (1.234 gph) Sapphire Float, High Precision Valve (MFV) $251.00 $0.00
6AP1123M1Maximum Flow Range: Air - 4494 ml/min (9.520 scfh) | Water 132.5 ml/min (2.092 gph) 316 SS Float, High Precision Valve (MFV) $251.00 $0.00
6AP1124M1Maximum Flow Range: Air - 6467 ml/min (13.70 scfh) | Water 203.2 ml/min (3.218 gph) Carboloy Float, High Precision Valve (MFV) $251.00 $0.00
6AP1125M1Maximum Flow Range: Air - 3780 ml/min (8.00 scfh) | Water 89 ml/min (1.411 gph) Glass Float, High Precision Valve (MFV) $251.00 $0.00
6AP1126M1Maximum Flow Range: Air - 4942 ml/min (10.47 scfh) | Water 134 ml/min (2.124 gph) Sapphire Float, High Precision Valve (MFV) $251.00 $0.00
6AP1127M1Maximum Flow Range: Air - 7720 ml/min (16.35 scfh) | Water 234 ml/min (3.70 gph) 316 SS Float, High Precision Valve (MFV) $251.00 $0.00
6AP1128M1Maximum Flow Range: Air - 10780 ml/min (22.84 scfh) | Water 343 ml/min (5.437 gph) Carboloy Float, High Precision Valve (MFV) $251.00 $0.00
6AP1129M1Maximum Flow Range: Air - 8555 ml/min (18.12 scfh) | Water 200 ml/min (3.170 gph) Glass Float, High Precision Valve (MFV) $251.00 $0.00
6AP1130M1Maximum Flow Range: Air - 11140 ml/min (23.60 scfh) | Water 301 ml/min (4.771 gph) Sapphire Float, High Precision Valve (MFV) $266.00 $0.00
6AP1131M1Maximum Flow Range: Air - 16493 ml/min (34.94 scfh) | Water 498 ml/min (7.893 gph) 316 SS Float, High Precision Valve (MFV) $251.00 $0.00
6AP1132M1Maximum Flow Range: Air - 23001 ml/min (48.73 scfh) | Water 736 ml/min (11.67 gph) Carboloy Float, High Precision Valve (MFV) $261.00 $0.00
6AP1133M1Maximum Flow Range: Air - 23105 ml/min (48.95 scfh) | Water 579 ml/min (9.177 gph) Glass Float, High Precision Valve (MFV) $261.00 $0.00
6AP1134M1Maximum Flow Range: Air - 29410 ml/min (62.30 scfh) | Water 833 ml/min (13.2 gph) Sapphire Float, High Precision Valve (MFV) $266.00 $0.00
6AP1135M1Maximum Flow Range: Air - 42860 ml/min (90.80 scfh) | Water 1339 ml/min (21.22 gph) 316 SS Float, High Precision Valve (MFV) $261.00 $0.00
6AP1136M1Maximum Flow Range: Air - 60212 ml/min (127.5 scfh) | Water 1972 ml/min (31.26 gph) Carboloy Float, High Precision Valve (MFV) $261.00 $0.00

* Required Fields

Usually Ships in 5 to 7 Business Days
$251.00
