65mm Aluminum Flow Meter, No Valve

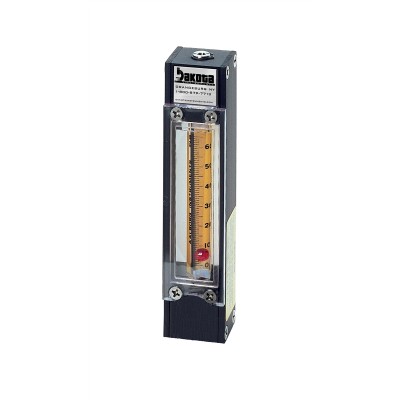

65mm Aluminum Flow Meter, No Valve
Image for illustrative purposes only, actual product may vary.

Designed for low flow rates, these 65mm Single Tube Aluminum Flow Meters are precision instruments embodying the inherent simplicity, versatility and economy of the classical variable area meter. They are particularly suitable for metering carrier gases in chromatography, in manufacturing processes, liquid and gas measurements in laboratories, pilot plants, flow and level indicating and controlling gases. No Valve.
  • Rib-guided or fluted metering tubes facilitate stable, accurate readings.
  • Magnifier lens in front shield enhance reading resolution
  • Interchangeability of flow tubes and floats
  • Ease of installation and exchange of flow tubes
  • Simple means of panel mounting
  • Chemical compatibility
Specifications: 6AP01; 6AP11; 6AP21
Standard Accuracy: +/- 2% of full scale (mm scales)
+/- 5% of full scale (direct reading scales)
Repeatability: +/- 0.25%
Useful Flow Ranges: 10:1 minimum with one float and better than 20:1 with combination of two floats installed in meters.
Maximum Operating Pressure: 200 psig / 13.8 bars
Maximum Operating Temperature: 121° C (250° F)
Flow Tubes: Heavy walled borosilicate glass
Tube Shields: Thick, clear, polycarbonate and white acrylic
Floats: Glass, Sapphire, 316 Stainless Steel, Carboloy®
Choice Of Fittings in Contact with Fluids: a) Aluminum, black anodized
b) Brass, chrome plated
c) 316 stainless steel
Side Panels: Aluminum, black anodized.
Front Shield and Back Plate: Lexan® with longitudinal magnifier lens for enhanced reading resolution.
O-rings and Packings: Buna-N® O-rings in aluminum and brass models. Viton® O-rings in 316 stainless steel models. OPTIONAL Viton® PTFE Kalrez® and EPR
Connections: 1/8" NPT female inlet and outlet connections OPTIONAL Glass hose or compression fittings.
Usually Ships in 5 to 7 Business Days
Item # Item Description Item Price Subtotal Qty
6AP0101N6 Maximum Flow Range: Air - 5.8 ml/min (0.013 scfh) Glass Float, No Valve $111.00 $0.00
6AP0102N6 Maximum Flow Range: Air - 9 ml/min (0.017 scfh) Sapphire Float, No Valve $111.00 $0.00
6AP0103N6 Maximum Flow Range: Air - 19 ml/min (0.036 scfh) 316 SS Float, No Valve $111.00 $0.00
6AP0104N6 Maximum Flow Range: Air - 33 ml/min (0.070 scfh) Carboloy Float, No Valve $111.00 $0.00
6AP0105N6 Maximum Flow Range: Air - 49 ml/min (0.104 scfh) | Water 0.55 ml/min (0.009 gph) Glass Float, No Valve $111.00 $0.00
6AP0106N6 Maximum Flow Range: Air - 74 ml/min (0.153 scfh) | Water 0.98 ml/min (0.016 gph) Sapphire Float, No Valve $111.00 $0.00
6AP0107N6 Maximum Flow Range: Air - 145 ml/min (0.307 scfh) | Water 2.38 ml/min (0.038 gph) 316 SS Float, No Valve $111.00 $0.00
6AP0108N6 Maximum Flow Range: Air - 246 ml/min (0.528 scfh) | Water 4.60 ml/min (0.073 gph) Carboloy Float, No Valve $111.00 $0.00
6AP0109N6 Maximum Flow Range: Air - 107 ml/min (0.22 scfh) | Water 1.28 ml/min (0.020 gph) Glass Float, No Valve $111.00 $0.00
6AP0110N6 Maximum Flow Range: Air - 167 ml/min (0.35 scfh) | Water 2.60 ml/min (0.041 gph) Sapphire Float, No Valve $111.00 $0.00
6AP0111N6 Maximum Flow Range: Air - 314 ml/min (0.66 scfh) | Water 6.15 ml/min (0.098 gph) 316 SS Float, No Valve $111.00 $0.00
6AP0112N6 Maximum Flow Range: Air - 517 ml/min (1.09 scfh) | Water 11.21 ml/min (0.179 gph) Carboloy Float, No Valve $111.00 $0.00
6AP0113N6 Maximum Flow Range: Air - 216 ml/min (0.46 scfh) | Water 3.0 ml/min (0.048 gph) Glass Float, No Valve $111.00 $0.00
6AP0114N6 Maximum Flow Range: Air - 320 ml/min (0.68 scfh) | Water 5.7 ml/min (0.091 gph) Sapphire Float, No Valve $111.00 $0.00
6AP0115N6 Maximum Flow Range: Air - 538 ml/min (1.14 scfh) | Water 11.7 ml/min (0.187 gph) 316 SS Float, No Valve $111.00 $0.00
6AP0116N6 Maximum Flow Range: Air - 826 ml/min (1.75 scfh) | Water 20.0 ml/min (0.320 gph) Carboloy Float, No Valve $111.00 $0.00
6AP0117N6 Maximum Flow Range: Air - 1036 std. ml/min (2.20 scfh) | Water - 20 ml/min (0.317 gph), Glass Float, No Valve $111.00 $0.00
6AP0118N6 Maximum Flow Range: Air - 1383 std. ml/min (2.93 scfh) | Water - 33 ml/min (0.523 gph), Sapphire Float, No Valve $111.00 $0.00
6AP0119N6 Maximum Flow Range: Air - 2088 ml/min (4.42 scfh) | Water 57 ml/min (0.903 gph), 316 SS Float, No Valve $111.00 $0.00
6AP0120N6 Maximum Flow Range: Air - 3007 ml/min (6.37 scfh) | Water 89.0 ml/min (1.41 gph), Carboloy Float, No Valve $111.00 $0.00
6AP0121N6 Maximum Flow Range: Air - 1249 ml/min (2.65 scfh) | Water 25 ml/min (0.396 gph) Glass Float, No Valve $111.00 $0.00
6AP0122N6 Maximum Flow Range: Air - 1623 ml/min (3.44 scfh) | Water 36.7 ml/min (0.581 gph) Sapphire Float, No Valve $123.00 $0.00
6AP0123N6 Maximum Flow Range: Air - 2520 ml/min (5.34 scfh) | Water 70.7 ml/min (1.121 gph) 316 SS Float, No Valve $111.00 $0.00
6AP0124N6 Maximum Flow Range: Air - 3680 ml/min (7.80 scfh) | Water 103.5 ml/min (1.641 gph) Carboloy Float, No Valve $123.00 $0.00
6AP0125N6 Maximum Flow Range: Air - 2030 ml/min (4.3 scfh) | Water 40.01 ml/min (0.641 gph) Glass Float, No Valve $111.00 $0.00
6AP0126N6 Maximum Flow Range: Air - 2655 ml/min (5.62 scfh) | Water 63.1 ml/min (1.0 gph) Sapphire Float, No Valve $123.00 $0.00
6AP0127N6 Maximum Flow Range: Air - 4041 ml/min (8.56 scfh) | Water 111.2 ml/min (1.76 gph) 316 SS Float, No Valve $111.00 $0.00
6AP0128N6 Maximum Flow Range: Air - 5769 ml/min (12.22 scfh) | Water 169.9 ml/min (2.69 gph) Carboloy Float, No Valve $123.00 $0.00
6AP0129N6 Maximum Flow Range: Air - 2522 ml/min (5.35 scfh) | Water 54.7 ml/min (0.86 gph) Glass Float, No Valve $111.00 $0.00
6AP0130N6 Maximum Flow Range: Air - 4917 ml/min (10.42 scfh) | Water 143 ml/min (2.26 gph) 316 SS Float, No Valve $111.00 $0.00
6AP0131N6 Maximum Flow Range: Air - 6318 ml/min (13.4 scfh) | Water 147 ml/min (2.33 gph) Glass Float, No Valve $111.00 $0.00
6AP0132N6 Maximum Flow Range: Air - 8145 ml/min (17.3 scfh) | Water 217 ml/min (3.44 gph) Sapphire Float, No Valve $128.00 $0.00
6AP0133N6 Maximum Flow Range: Air - 12058 ml/min (25.5 scfh) | Water 364 ml/min (5.77 gph) 316 SS Float, No Valve $111.00 $0.00
6AP0134N6 Maximum Flow Range: Air - 16943 ml/min (35.9 scfh) | Water 540 ml/min (8.56 gph) Carboloy Float, No Valve $123.00 $0.00
6AP0135N6 Maximum Flow Range: Air - 12860 ml/min (27.2 scfh) | Water 307 ml/min (4.86 gph) Glass Float, No Valve $111.00 $0.00
6AP0136N6 Maximum Flow Range: Air - 16617 std. ml/min (35.2 scfh) | Water - 449 ml/min (7.11 gph) Sapphire Float, No Valve $128.00 $0.00
6AP0137N6 Maximum Flow Range: Air - 24452 std. ml/min (51.8 scfh) | Water - 723 ml/min (11.46 gph) 316 SS Float, No Valve $111.00 $0.00
6AP0138N6 Maximum Flow Range: Air - 34507 std. ml/min (73.1 scfh) | Water - 1049 ml/min (16.63 gph) Carboloy Float, No Valve $123.00 $0.00
6AP0139N6 Maximum Flow Range: Air - 21969 std. ml/min (46.5 scfh) | Water - 550 ml/min (8.71 gph) Glass Float, No Valve $123.00 $0.00
6AP0140N6 Maximum Flow Range: Air - 28518 ml/min (60.4 scfh) | Water 811 ml/min (12.85 gph) Sapphire Float, No Valve $128.00 $0.00
6AP0141N6 Maximum Flow Range: Air - 41289 ml/min (87.4 scfh) | Water 1297 ml/min (20.56 gph) 316 SS Float, No Valve $123.00 $0.00
6AP0142N6 Maximum Flow Range: Air - 58348 ml/min (123.6 scfh) | Water 1895 ml/min (30.04 gph) Carboloy Float, No Valve $123.00 $0.00
