Oxygen Flow Meters - Acrylic, Brass Fittings, Valve Included

Oxygen Flow Meters - Acrylic, Brass Fittings, Valve Included

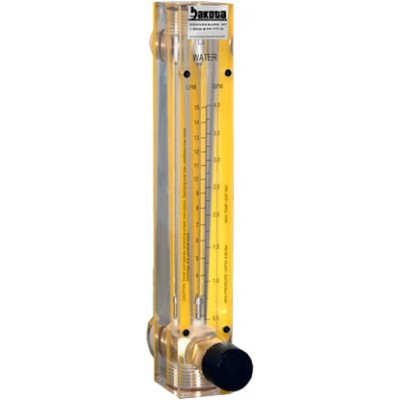

Image for illustrative purposes only, actual product may vary.

This Acrylic Flow Meter with Valve has a Dual Direct Reading Scale with yellow backing for easy viewing of Oxygen flow values. Viton^® Seals, 3/8" FNPT and Brass End fittings are standard. The float/guide material is 316 Stainless Steel. This Flow Meter is designed for panel mounting and can handle a Maximum Flow Rate of 250 LPM (9 SCFM).

Features
Technical Specs
User Manual & Documentation

Yellow Backed Scales in English or Metric Measures
Panel Mount
No Valve
Simple Dis-assembly and Assembly for Cleaning
Stable, Easy to Read Float
Optional scales can be developed for diverse low flow conditions, facilitating OEM applications
Valve Included

USA/CAN	800-879-7713
INTL	845-770-3200

Specifications		6A02 Acrylic Flow Meters
Accuracy:		+/- 5% of Full Scale reading
Maximum Temperature:		54° C (130 F)
Maximum Pressure:		6.89 bars (100 psig)
Maximum Flow Rate:		550 LPM (20 SCFM)
Body:		Optical, Clear, Cast Acrylic
Float & Guide		316 Stainless Steel
O-Rings:		Viton®
Connections:		Brass 3/8" NPT Female Connections
Valve Parts:		Brass
