Dakota

DPC mass flow controllers provide the highest accuracy and fastest control of mass flow rates of process gases. Displays of Mass and Volumetric Flows, as well as Pressure and Temperature parameters and built-in Multi-Gas functionality facilitate the selection of up to 90 different gases and mixtures.

These differential pressure mass flow controllers feature two programmable flow totalizers with batch processing mode, standard accuracy (0.5% RD + 0.2% FS), 200:1 turn down ratio and less than 150 ms response time.

Significant savings are apparent, when comparing the cost of a single DPC embodying these features, with that of acquiring and installing multiple, application-specific devices.

Totalizer Input/Output Flow Monitor/Controller Mounting Kits for Mass Flow Controllers

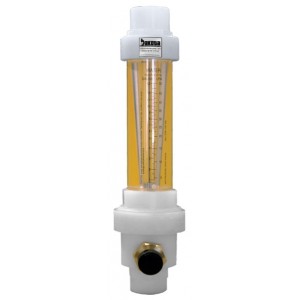

Available for multiple flow rates, this Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of Carbon Dioxide flow values. Viton Seals, 1/8" FNPT and Brass End fittings are standard. The float material varies based on the metering range (316 SS, Carboloy, Glass). Available for metering flow rates from 1.1 LPM (2.5 SCFH) to 35 LPM (80 SCFH).

Available for multiple flow rates, this Acrylic Flow meter has a Dual Direct Reading Scale with yellow backing for easy viewing of Air flow values. Viton Seals, 1/8" FNPT and Stainless Steel End fittings are standard. The float material varies based on the metering range (316 SS, Carboloy, Glass).

Available for multiple flow rates, this Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of Argon flow values. Viton Seals, 1/8" FNPT and Stainless Steel End fittings are standard. The float material varies based on the metering range (316 SS, Carboloy, Glass). Available for metering flow rates from 1.0 LPM (2.0 SCFH) to 40 LPM (80 SCFH).

Available for multiple flow rates, this Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of Water flow values. Viton Seals, 1/8" FNPT and Stainless Steel End fittings are standard. The float material varies based on the metering range (316 SS, Carboloy, Glass). Available for metering flow rates from 20 mL/min (0.3 GPH) to 1400 mL/min (22 GPH).

Available for multiple flow rates, this Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of Nitrogen flow values. Viton Seals, 1/8" FNPT and Stainless Steel fittings are standard. The float material varies based on the metering range (316 SS, Carboloy, Glass). Available for metering flow rates from 1.3 LPM (2.75 SCFH) to 45 LPM (100 SCFH)

Pulse Width Modulated, Driver Module, (6APSD0101).

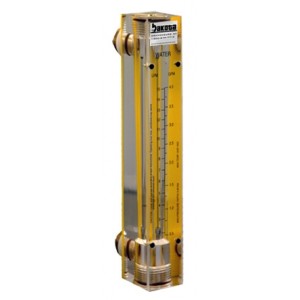

This Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of Air flow values. Viton^® Seals, 3/8" FNPT and Brass End fittings are standard. The float/guide material is 316 Stainless Steel. This Flow Meter is designed for panel mounting and can handle a Maximum Flow Rate of 550 LPM (20 SCFM). No Valve.

This Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of Nitrogen flow values. Viton^® Seals, 3/8" FNPT and Brass End fittings are standard. The float/guide material is 316 Stainless Steel. This Flow Meter is designed for panel mounting and can handle a Maximum Flow Rate of 575 LPM (21 SCFM). No Valve.

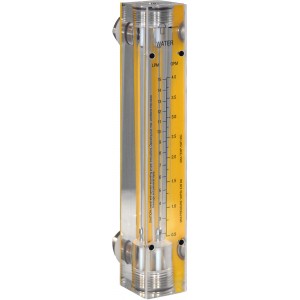

This Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of H20 flow values. Viton^® Seals, 3/8" FNPT and Brass End fittings are standard. The float/guide material is 316 Stainless Steel. This Flow Meter is designed for panel mounting and can handle a Maximum Flow Rate of 15 LPM (4 GPM). No Valve.

This Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of Argon flow values. Viton^® Seals, 3/8" FNPT and Brass End fittings are standard. The float/guide material is 316 Stainless Steel. This Flow Meter is designed for panel mounting and can handle a Maximum Flow Rate of 525 LPM (19 SCFM). No Valve.

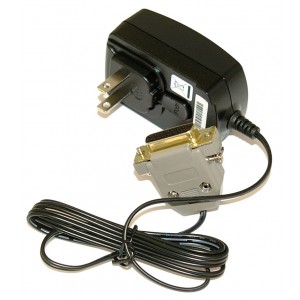

Power Supply for Porportionating Solenoid Valve Driver Module 24Vdc

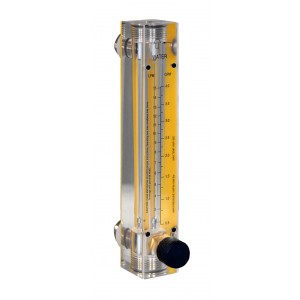

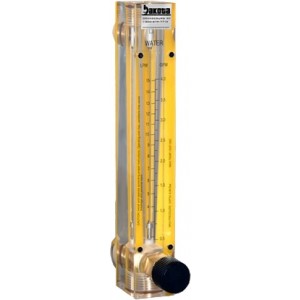

This Acrylic Flow Meter with Valve has a Dual Direct Reading Scale with yellow backing for easy viewing of Argon flow values. Viton^® Seals, 3/8" FNPT and Brass End fittings are standard. The float/guide material is 316 Stainless Steel. This Flow Meter is designed for panel mounting and can handle a Maximum Flow Rate of 525 LPM (19 SCFM).

This Acrylic Flow Meter with Valve has a Dual Direct Reading Scale with yellow backing for easy viewing of Nitrogen flow values. Viton^® Seals, 3/8" FNPT and Brass End fittings are standard. The float/guide material is 316 Stainless Steel. This Flow Meter is designed for panel mounting and can handle a Maximum Flow Rate of 575 LPM (21 SCFM).

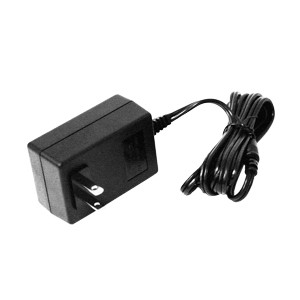

Power Supply for GM Series Mass Flow Meters

This Acrylic Flow Meter has a Dual Direct Reading Scale with yellow backing for easy viewing of Carbon Dioxide (CO2) flow values. Viton^® Seals, 3/8" FNPT and Brass End fittings are standard. The float/guide material is 316 Stainless Steel. This Flow Meter is designed for panel mounting and can handle a Maximum Flow Rate of 475 LPM (17 SCFM). No Valve.
