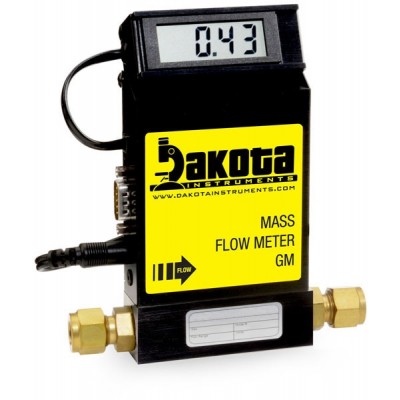

GM1 Series - Hydrogen Mass Flow Meter - Aluminum, Low Flow, With or Without LCD Readout, 1/4 Inch Compression Fittings, 0-5VDC Analog Output

Compact, self-contained Mass Flow Meters are designed to read flow rates of gases. The rugged designed coupled with instrumentation grade accuracy provides versatile and economical means of flow measurement. Available in flow ranges from 10 mL/min to 1000L/min relative to Nitrogen, each model is calibrated on-site with numerous gas selections, including gas mixtures offered. For gases and gas mixtures not shown consult with Dakota. Accuracy +/-1% full scale for models up to 100 Liters per minute. Flow rates are unaffected by temperature and pressure variations within stated limitations.

The mechanical layout of the design includes an optional LCD readout built into the top of the transducer. This readout module is tiltable over 90 degrees to provide optimal reading comfort. It is connected to the transducer by a standard modular plug, and is also readily removable for remote reading installations. Aluminum and stainless steel models with readout options of either engineering units (standard) or 0 to 100 percent displays are available.

Power Supply Sold Separately
