Polysulfone In-Line Flow Meter with FNPT PVC Connections - Water (GPM/LPM)

Polysulfone In-Line Flow Meter with FNPT PVC Connections - Water (GPM/LPM)

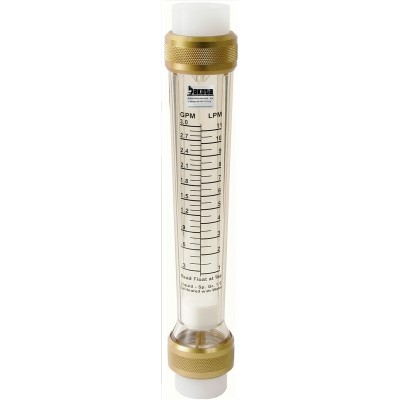

Image for illustrative purposes only, actual product may vary.

The 6B05 series flow meter's rib guided polysulfone contains no metal in the fluid path. This makes the flow meter desirable in highly corrosive environments or deionized water applications. The 6B0500-PVC is equipped with 1/2" or 3/4" FNPT Adapters.
  • Tough Polysulfone Meter Body Resists High Temperatures and Pressures.
  • Easy to Read Direct Reading Dual Scales (GPM/LPM)
  • Scale Length: 4" (100 mm).
  • No Metal in Fluid Path
  • Ideal for Corrosive Environments such as Deionized Water Applications where Plastic Meters are Desirable.
  • PTFE Float and Optional Polysulfone, Polypropylene or PVDF Adapters for Corrosive Applicaitons
  • Very Low Pressure Drop
  • Not Recommended for Direct Sunlight Applications.
Specifications 6B0500-PVC
Accuracy: +/- 2.5% of Full Scale reading
Maximum Fluid Temperature:
Polysulfone Adapters: 65 ° C (150° F) @ 0 PSI

PVC Adapters: 54° C (130° F) @ 0 PSI

PVDF Adapters: 98° C (210° F) @ 0 PSI
Maximum Working Pressure:
10.3 bars (150 psig) @ 21 ° C (70° F)
Maximum Pressure Drop: 2 PSI
Meter Body Material:
Polysulfone
Connection Material:
PVC Optional: Polypropylene & PVDF
Float Materials:
PTFE
O-Ring Seals:
Viton® Optional: EP Available

Usually Ships in 5 to 7 Business Days
Item # Item Description Item Price Subtotal Qty
6B0500-01D Flow Range: 0.1 - 1.2 GPM, 0.4 - 4.4 LPM, Height: 10", Float: PTFE, Adapter: 1/2" FNPT PVC $284.00 $0.00
6B0500-01E Flow Range: 0.1 - 1.2 GPM, 0.4 - 4.4 LPM, Height: 10", Float: PTFE, Adapter: 3/4" FNPT PVC $284.00 $0.00
6B0500-02D Flow Range: 0.2 - 2.0 GPM, 0.8 - 8.0 LPM, Height: 10", Float: PTFE, Adapter: 1/2" FNPT PVC $284.00 $0.00
6B0500-02E Flow Range: 0.2 - 2.0 GPM, 0.8 - 8.0 LPM, Height: 10", Float: PTFE, Adapter: 3/4" FNPT PVC $284.00 $0.00
6B0500-03D Flow Range: 0.3 - 3.0 GPM, 1.0 - 11.0 LPM, Height: 10", Float: PTFE, Adapter: 1/2" FNPT PVC $284.00 $0.00
6B0500-03E Flow Range: 0.3 - 3.0 GPM, 1.0 - 11.0 LPM, Height: 10", Float: PTFE, Adapter: 3/4" FNPT PVC $284.00 $0.00
6B0500-04D Flow Range: 0.5 - 5.0 GPM, 2.0 - 20.0 LPM, Height: 10", Float: PTFE, Adapter: 1/2" FNPT PVC $284.00 $0.00
6B0500-04E Flow Range: 0.5 - 5.0 GPM, 2.0 - 20.0 LPM, Height: 10", Float: PTFE, Adapter: 3/4" FNPT PVC $284.00 $0.00
