Polysulfone High Volume Panel Mount Flow Meter with Polysulfone Connections - Water (GPM/LPM), No Valve

Polysulfone High Volume Panel Mount Flow Meter with Polysulfone Connections - Water (GPM/LPM), No Valve

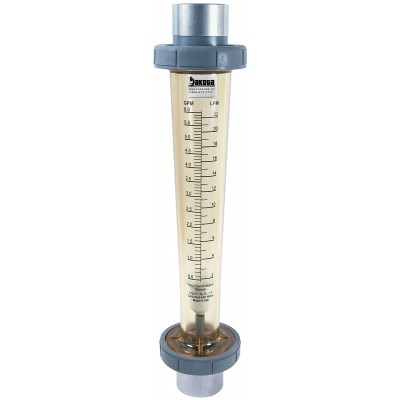

Image for illustrative purposes only, actual product may vary.

The 6B0301-H2O is a high volume series of flow meters offering excellent accuracy and repeatability. Combined with a durable injection molded Polysulfone meter body and connections, this flow meter offers cost effective 316 SS internal parts. This flow meter is designed to be panel mounted. With a 1" FNPT connection, this line has a liquid flow range of 0.5 to 40 GPM (2 - 155 LPM). Half unions couple the meter body to the connectors at each end of the flow meter, facilitating both installation and maintenance.
  • Economical
  • Tough Polysulfone Meter Body Resists High Temperatures and Pressures.
  • Easy to Read Direct Reading Dual Scale (GPM/LPM or SCFM/M3HR)
  • Standard Models #316 Stainless Steel Guide Rods (Optional Hastelloy® C-276 Available).
  • Standard Models #316 Stainless Steel or PTFE Float (Optional Hastelloy® C-276 or PVC Available).
  • Not Recommended for Direct Sunlight Applications.
Specifications 6B0301-H2O
Accuracy: +/- 3% of Full Scale reading
Maximum Fluid Temperature:
Units with 1" Polysulfone Adapters: 100 ° C (212° F) @ 0 PSI

Units with 1.5" PVC Adapters: 54° C (130° F) @ 0 PSI

Units with Brass Adapters: 115° C (240° F) @ 0 PSI
Maximum Working Pressure:
10.3 bars (150 psig) @ 21 ° C (70° F)
Maximum Pressure Drop: 2 PSI
Meter Body Material:
Polysulfone
Connection Material:
Polysulfone
Float Materials:
316 SS, PTFE
O-Ring Seals:
Viton®
Calibration Fluid: Water, Specific Gravity 1.0

Usually Ships in 5 to 7 Business Days
Item #Item DescriptionItem PriceSubtotalQty
6B0301-01FFlow Range: 0.5 - 6.0 GPM, 2.0 - 22 LPM, Height: 17", Float: PTFE, Adapter: 1" FNPT Polysulfone $569.00 $0.00
6B0301-02FFlow Range: 1.0 - 10 GPM, 4.0 - 40 LPM, Height: 17", Float: 316 SS, Adapter: 1" MNPT Polysulfone $569.00 $0.00
6B0301-03FFlow Range: 2.0 - 20 GPM, 6.0 - 76 LPM, Height: 17", Float: 316 SS, Adapter: 1" MNPT Polysulfone $569.00 $0.00
6B0301-04FFlow Range: 3.0 - 30 GPM, 10 - 110 LPM, Height: 17", Float: 316 SS, Adapter: 1" MNPT Polysulfone $569.00 $0.00
6B0301-05FFlow Range: 4.0 - 40 GPM, 15 - 155 LPM, Height: 17", Float: 316 SS, Adapter: 1" MNPT Polysulfone $569.00 $0.00

* Required Fields

Usually Ships in 5 to 7 Business Days
$569.00
