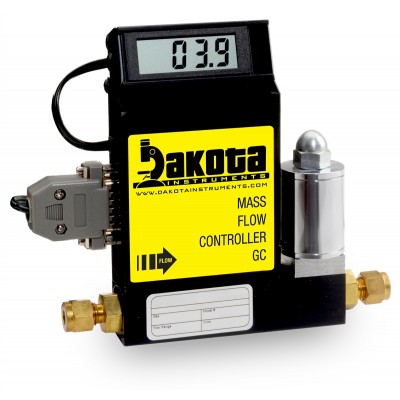

GC1 Series - Air Mass Flow Controller - Aluminum, Low Flow, With or Without LCD Readout, 1/4 Inch Compression Fittings, 0-5VDC Analog Input/Output

Compact and self-contained, Dakota's Mass Flow controllers are designed to indicate and control flow rates of gases. GC mass flow controllers combine the characteristics and accuracy of conventional mass flow devices at low costs previously unattainable. Available in flow ranges from 10 mL/min to 1000L/min relative to Nitrogen, each model is calibrated on-site with numerous gas selections, including gas mixtures offered. For gases and gas mixtures not shown consult with Dakota. These high precision controllers have +/-1% full scale accuracy for models up to 100 Liters per minute.

Each controller incorporates an advanced tube sensor in conjunction with flow passage elements constructed of aluminum and brass for non-corrosive gases or 316 stainless steel for corrosive applications. The mechanical layout of the design includes an optional LCD readout built into the top of the transducer. This readout module is tiltable over 90 degrees to provide optimal reading comfort. It is connected to the transducer by a standard modular plug, and is readily removable for remote reading installations. Readout option of either engineering units (standard) or 0 to 100 percent displays are available.

The built-in electromagnetic valve allows the flow to be set to any desired flow rate within the range of a particular model. Set points can be controlled either locally through a potentiometer or remotely by analog signals of 0-5VDC or 4-20mA.

Power Supplies Sold Separately! Click here to purchase power supplies
